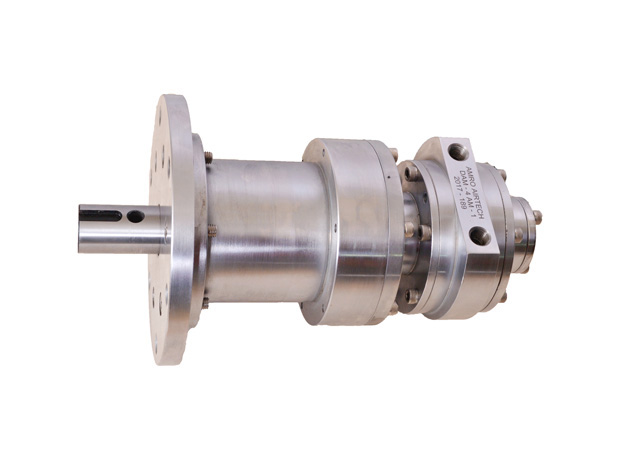

Vane Air Motors with Planetory Gear Box :: DAM-2AM-1-GB-23
| HP | 0.93 |
| Gear Ratio | 23.04 |
| Stages | 2 |
| Free Speed RPM | 215 |
| Working Speed RPM | 125 |
| Working Torque Nt-Mt | 51 |
| Stall Torque Nt-Mt | 69 |
| Air
Consumption m3/min |
0.85 |
| Air
Consumption CFM |
30 |

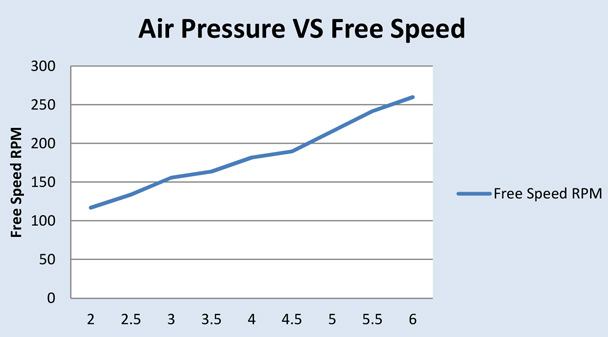

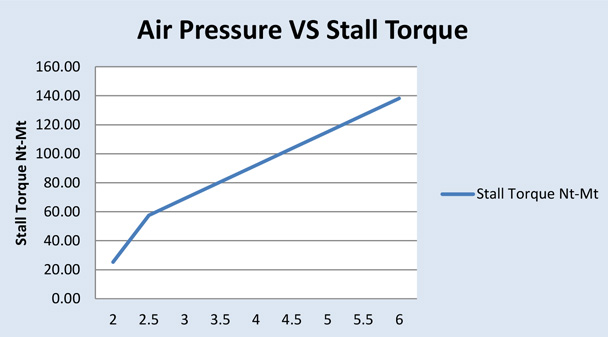

Performance Curves

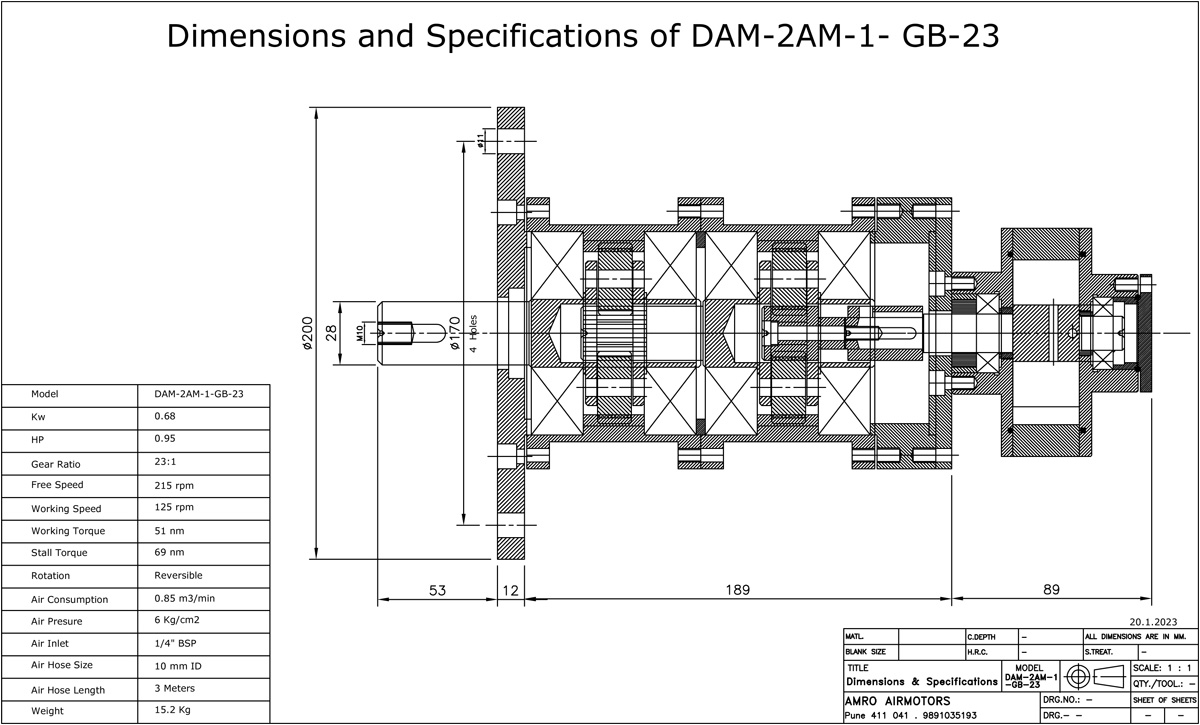

Dimensions & Specifications
