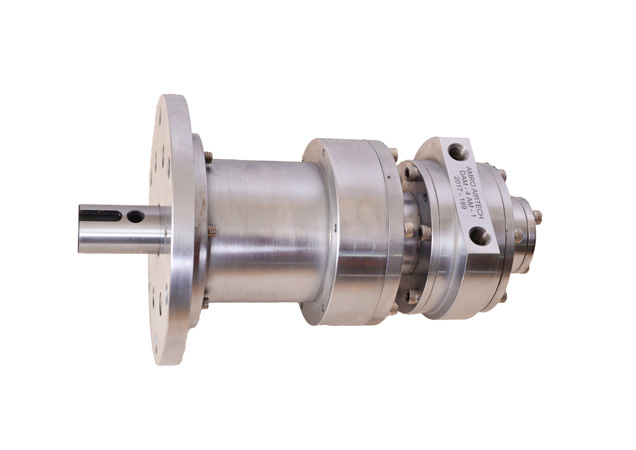

Vane Air Motors with Planetory Gear Box
| Model | HP | Gear Ratio |
Stages | Free Speed RPM |
Working Speed RPM |
Working Torque Nt-Mt |
Stall Torque Nt-Mt |
Air Consumption |
|
| m3/min | CFM | ||||||||
| DAM-2AM-1-GB-4.8 | 0.93 | 4.80 | 1 | 1040 | 620 | 11 | 14 | 0.85 | 30 |
| DAM-2AM-1-GB-6 | 0.93 | 6.0 | 1 | 830 | 495 | 13 | 18 | 0.85 | 30 |
| DAM-2AM-1-GB-7 | 0.93 | 7.0 | 1 | 715 | 425 | 15 | 23 | 0.85 | 30 |
| DAM-2AM-1-GB-23 | 0.93 | 23.04 | 2 | 215 | 125 | 51 | 69 | 0.85 | 30 |
| DAM-2AM-1-GB-36 | 0.93 | 36.00 | 2 | 135 | 80 | 79 | 108 | 0.85 | 30 |
| DAM-2AM-1-GB-49 | 0.93 | 49.00 | 2 | 102 | 60 | 107 | 161 | 0.85 | 30 |
| DAM-4AM-1-GB-4.8 | 1.7 | 4.80 | 1 | 1040 | 620 | 19 | 29 | 2.3 | 80 |
| DAM-4AM-1-GB-6 | 1.7 | 6.00 | 1 | 830 | 495 | 24 | 36 | 2.3 | 80 |
| DAM-4AM-1-GB-7 | 1.7 | 7.00 | 1 | 715 | 425 | 28 | 42 | 2.3 | 80 |
| DAM-4AM-1-GB-23 | 1.7 | 23.04 | 2 | 215 | 125 | 92 | 138 | 2.3 | 80 |
| DAM-4AM-1-GB-36 | 1.7 | 36.00 | 2 | 135 | 80 | 144 | 216 | 2.3 | 80 |
| DAM-4AM-1-GB-49 | 1.7 | 49.00 | 2 | 102 | 60 | 196 | 294 | 2.3 | 80 |
| DAM-6AM-1-GB-4.8 | 4 | 4.80 | 1 | 1040 | 620 | 48 | 62 | 3.8 | 133 |
| DAM-6AM-1-GB-6 | 4 | 6.00 | 1 | 830 | 495 | 60 | 78 | 3.8 | 133 |
| DAM-6AM-1-GB-7 | 4 | 7.00 | 1 | 715 | 425 | 70 | 91 | 3.8 | 133 |
| DAM-6AM-1-GB-23 | 4 | 23.04 | 2 | 215 | 125 | 230 | 300 | 3.8 | 133 |
| DAM-6AM-1-GB-36 | 4 | 36.00 | 2 | 135 | 80 | 360 | 468 | 3.8 | 133 |
| DAM-6AM-1-GB-49 | 4 | 49.00 | 2 | 102 | 60 | 490 | 637 | 3.8 | 133 |
