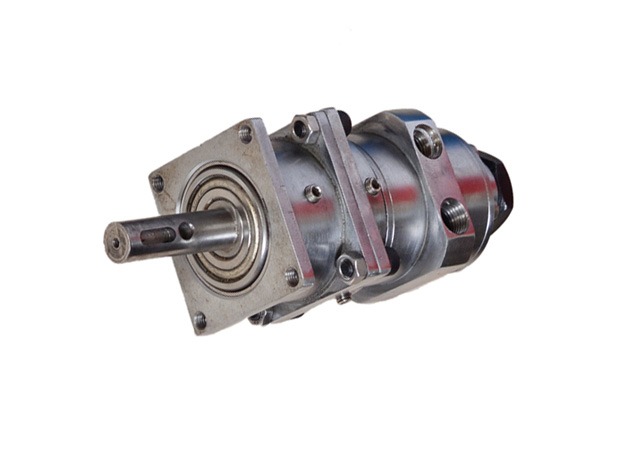

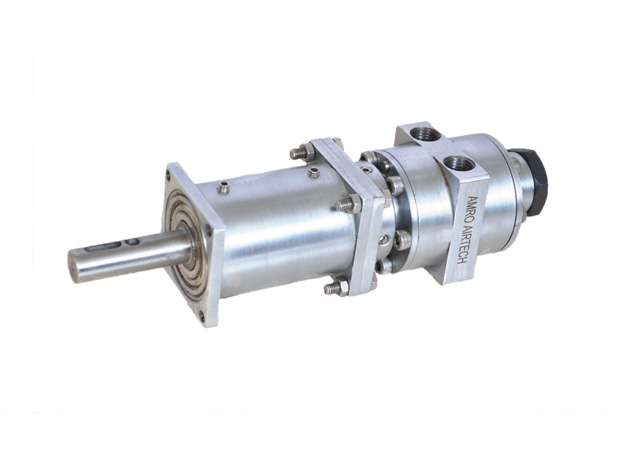

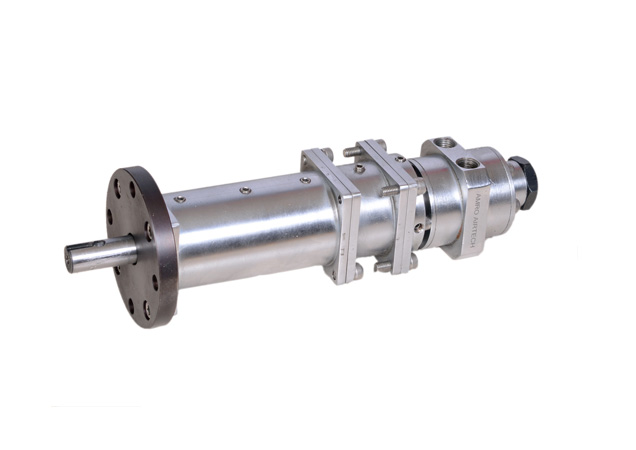

Compact Geared Air Motors
| DAM-7FG-MPGB-4.8 | DAM-7FG-MPGB-23 | DAM-7FG-MPGB-110 | |
| KW | 0.48 | 0.48 | 0.48 |
| HP | 0.65 | 0.65 | 0.65 |
| Free Speed RPM | 3000 | 650 | 130 |
| Operating Speed RPM | 2000 | 400 | 90 |
| Stall Torque Nt-Mt | 5.5 | 23 | 95 |
| Operating Torque Nt-Mt | 3.3 | 14 | 54 |
| Rotation | Reversible | Reversible | Reversible |
| Air Inlet Port BSP | 1/4" | 1/4" | 1/4" |
| Air Outlet Port BSP | 1/4" | 1/4" | 1/4" |
| Mounting | Flange | Flange | Flange |
| Air Pressure Max Kg/cm2 | 6 | 6 | 6 |
| Air Consumption M3/min | 0.75 | 0.75 | 0.75 |
| Air Hose Size mm | 10 x 12 | 10 x 12 | 10 x 12 |
| Air House Length mtrs | 3 | 3 | 2 |
| Weight kg | 1.6 | 2 | 2.5 |
