Vane Air Motors

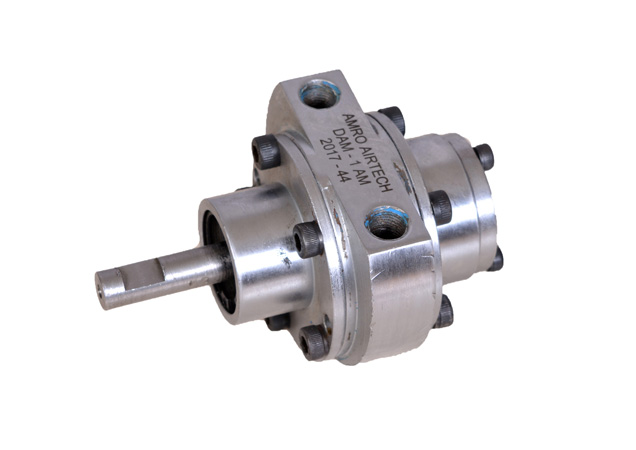

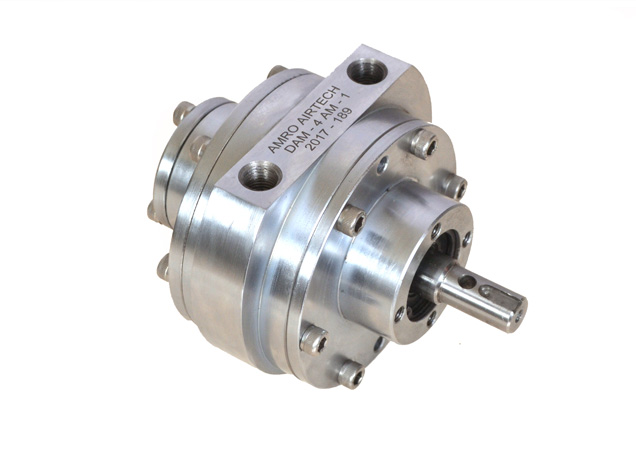

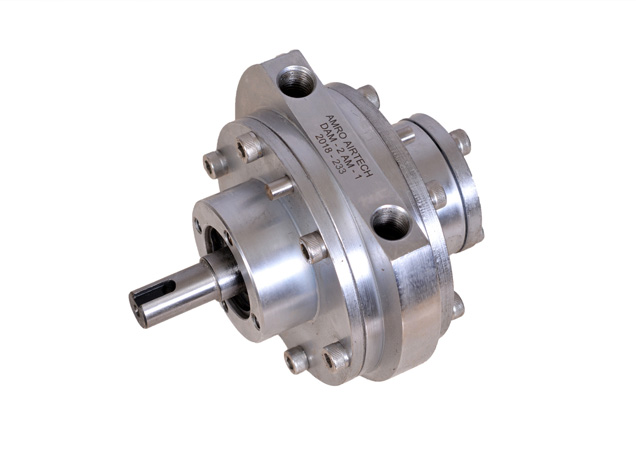

| DAM-1AM-1 | DAM-2AM-1 | DAM-4AM-1 | DAM-6AM-1 | |
| KW | 0.33 | 0.68 | 1.25 | 3 |
| HP | 0.45 | 0.93 | 1.7 | 4 |
| Free Speed RPM | 18000 | 5000 | 5000 | 5000 |
| Operating Speed RPM | 10000 | 3000 | 3000 | 3000 |
| Stall Torque Nt-Mt | 0.65 | 3.1 | 6 | 13 |
| Operating Torque Nt-Mt | 0.31 | 2.2 | 4 | 10 |
| Rotation | Reversible | Reversible | Reversible | Reversible |
| Air Inlet Port BSP | 1/8" | 1/4" | 1/4" | 1/2" |
| Air Outlet Port BSP | 1/8" | 1/4" | 1/4" | 1/2" |
| Mounting | Flange | Flange | Flange | Flange |
| Air Pressure Max Kg/cm2 | 6 | 6 | 6 | 6 |
| Air Consumption M3/min | 0.6 | 0.85 | 2.3 | 3.8 |
| Air Hose Size mm | 8 x 10 | 10 x 12 | 10 x 12 | 12 x 14 |
| Air House Length mtrs | 3 | 3 | 3 | 3 |
| Weight kg | 0.85 | 3.1 | 4.5 | 9.1 |
