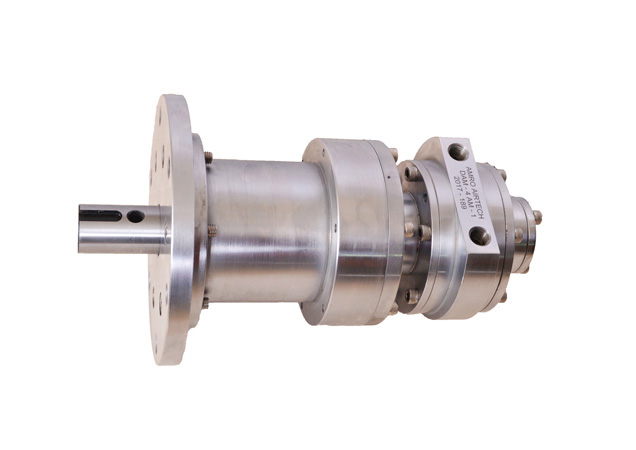

Vane Air Motors with Planetory Gear Box :: DAM-2AM-1-GB-36
| HP | 0.93 |
| Gear Ratio | 36.00 |
| Stages | 2 |
| Free Speed RPM | 135 |
| Working Speed RPM | 80 |
| Working Torque Nt-Mt | 79 |
| Stall Torque Nt-Mt | 108 |
| Air
Consumption m3/min |
0.85 |
| Air
Consumption CFM |
30 |

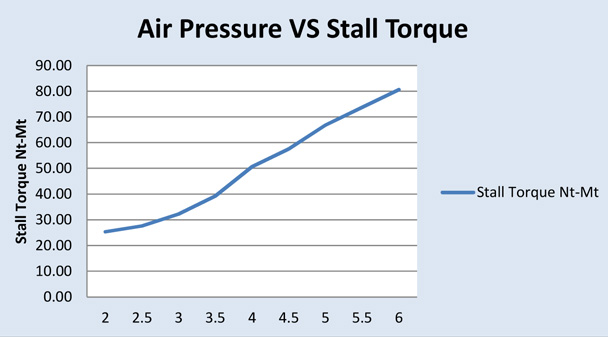

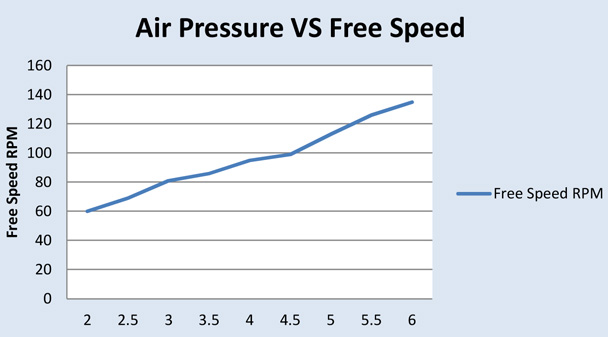

Performance Curves

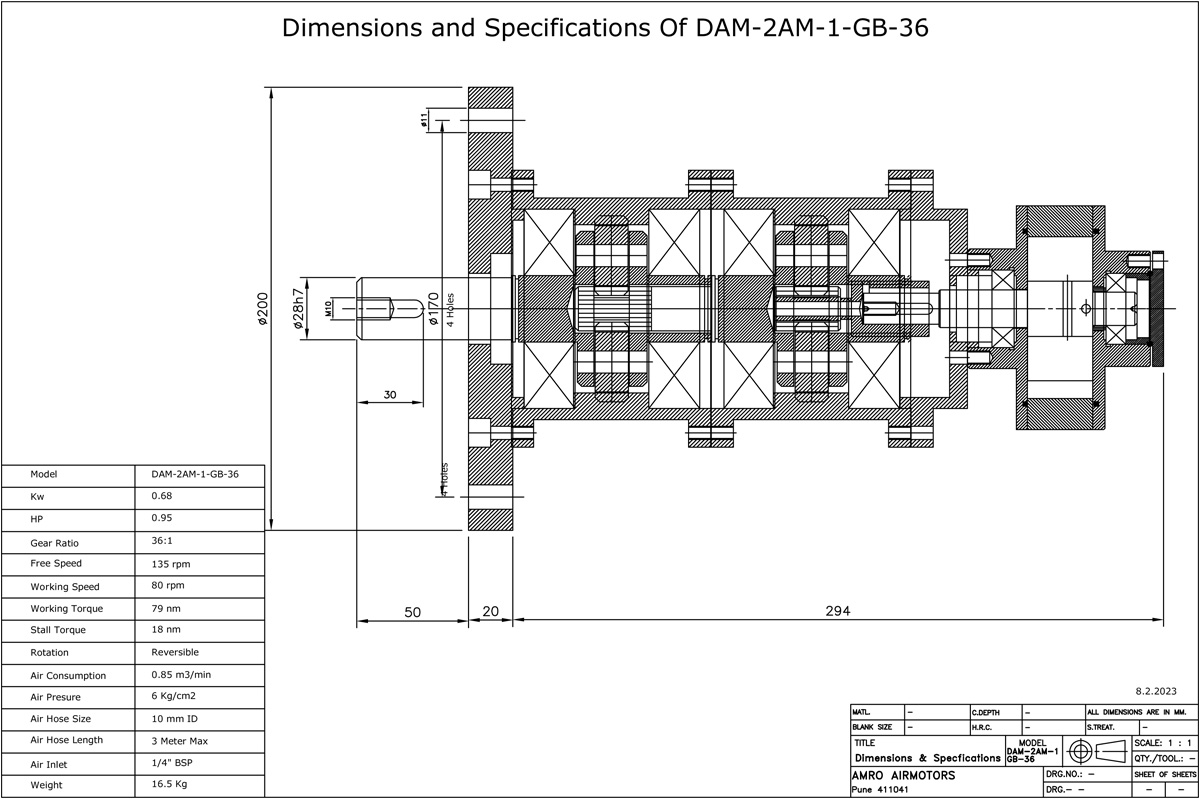

Dimensions & Specifications
