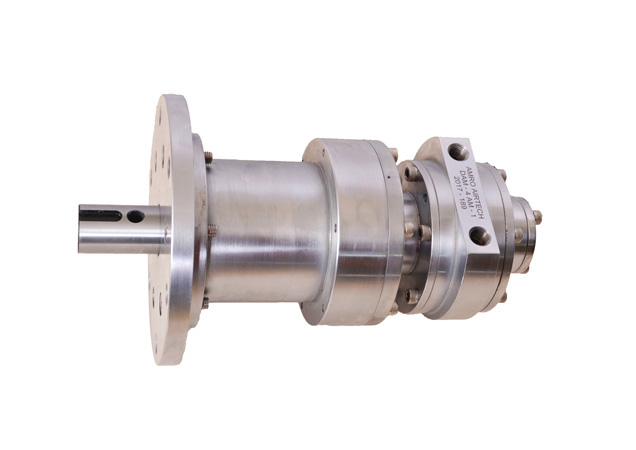

Vane Air Motors with Planetory Gear Box :: DAM-4AM-1-GB-6
| HP | 1.7 |
| Gear Ratio | 4.80 |
| Stages | 1 |
| Free Speed RPM | 1040 |
| Working Speed RPM | 620 |
| Working Torque Nt-Mt | 19 |
| Stall Torque Nt-Mt | 29 |
| Air
Consumption m3/min |
2.3 |
| Air
Consumption CFM |
80 |

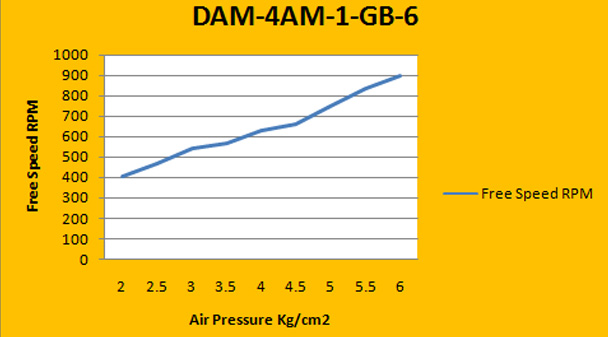

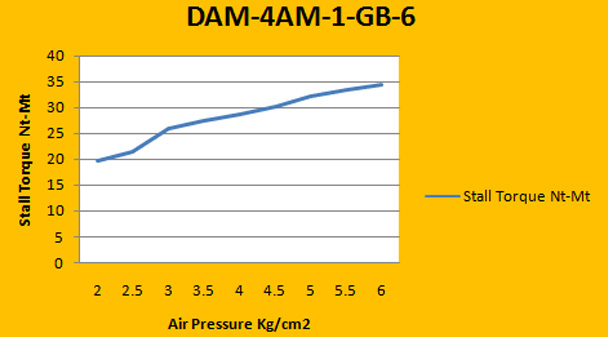

Performance Curves

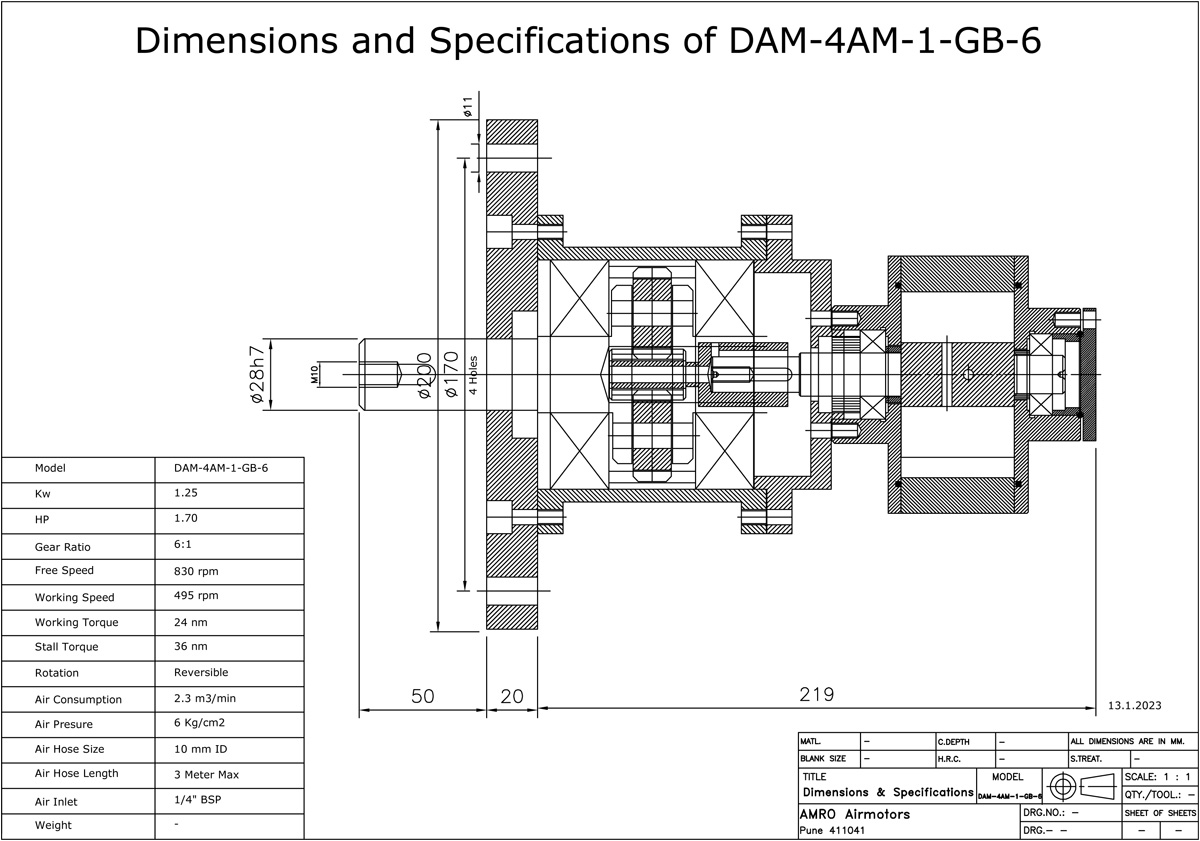

Dimensions & Specifications
