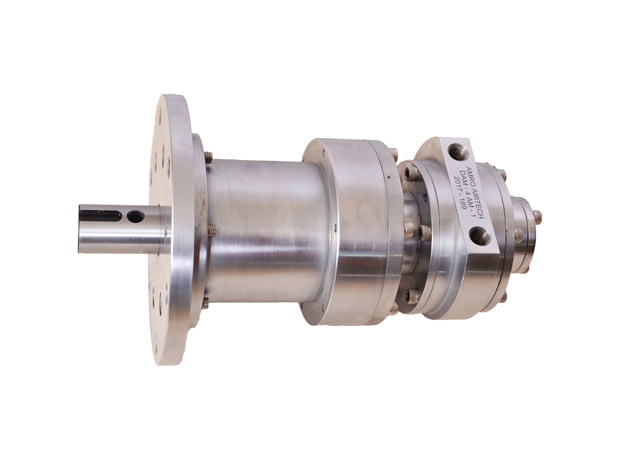

Vane Air Motors with Planetory Gear Box :: DAM-2AM-1-GB-7
| HP | 0.93 |
| Gear Ratio | 7.0 |
| Stages | 1 |
| Free Speed RPM | 715 |
| Working Speed RPM | 425 |
| Working Torque Nt-Mt | 15 |
| Stall Torque Nt-Mt | 23 |
| Air
Consumption m3/min |
0.85 |
| Air
Consumption CFM |
30 |

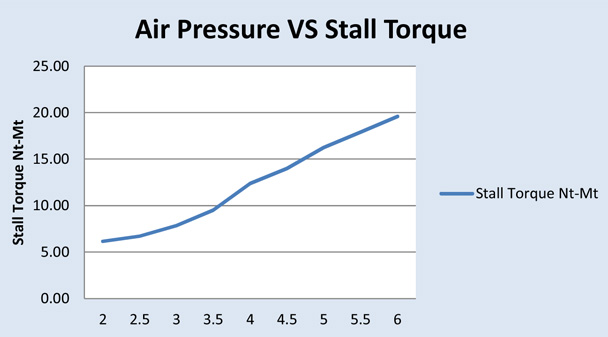

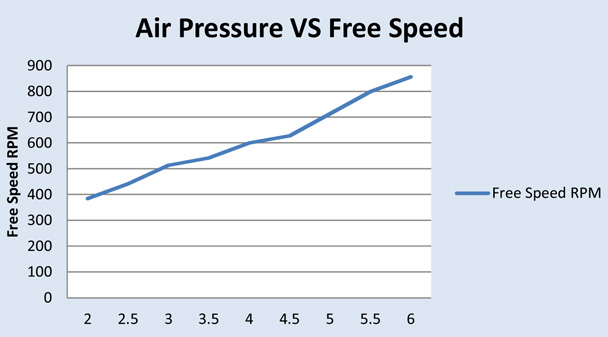

Performance Curves

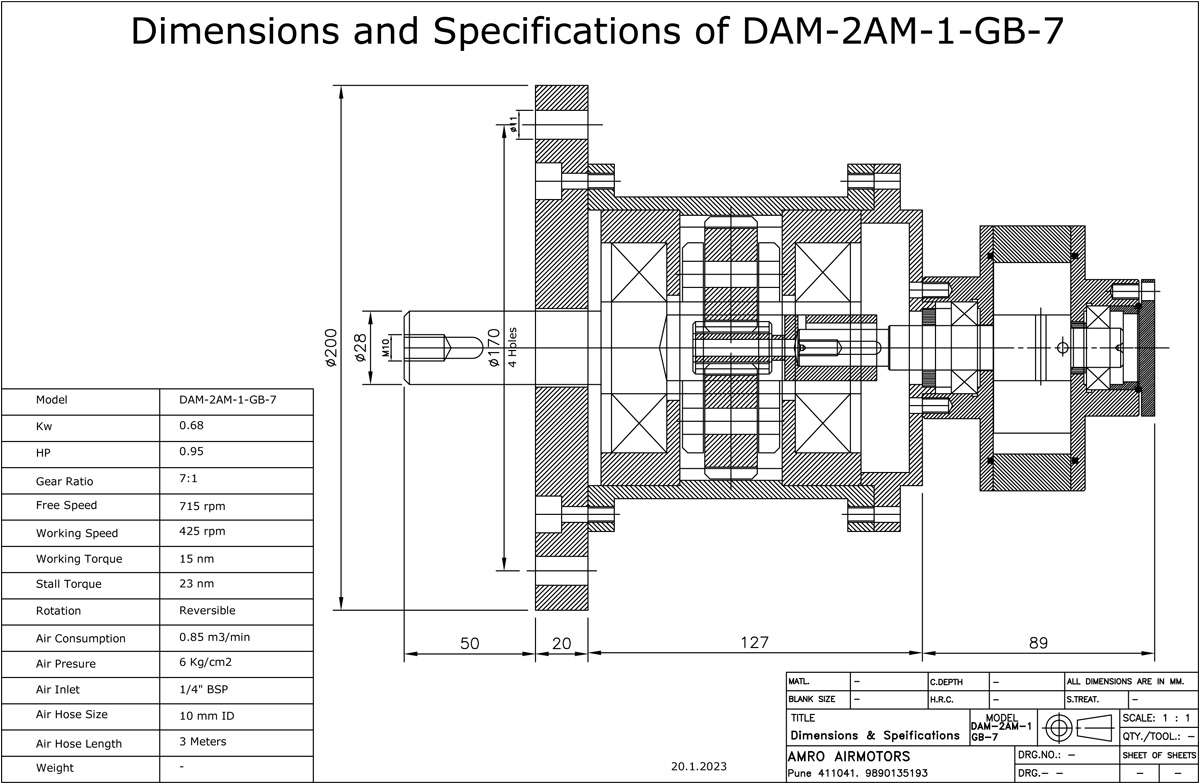

Dimensions & Specifications
